Description
Vehicle Compatibility
Suitable for Ford Rangers from July 2022 onward (Commonly known as “Next-Gen Ranger”) and VW Amarok from January 2023 that include the factory fitted 230V outlet – Generally these are vehicles built from mid-2025 onward.

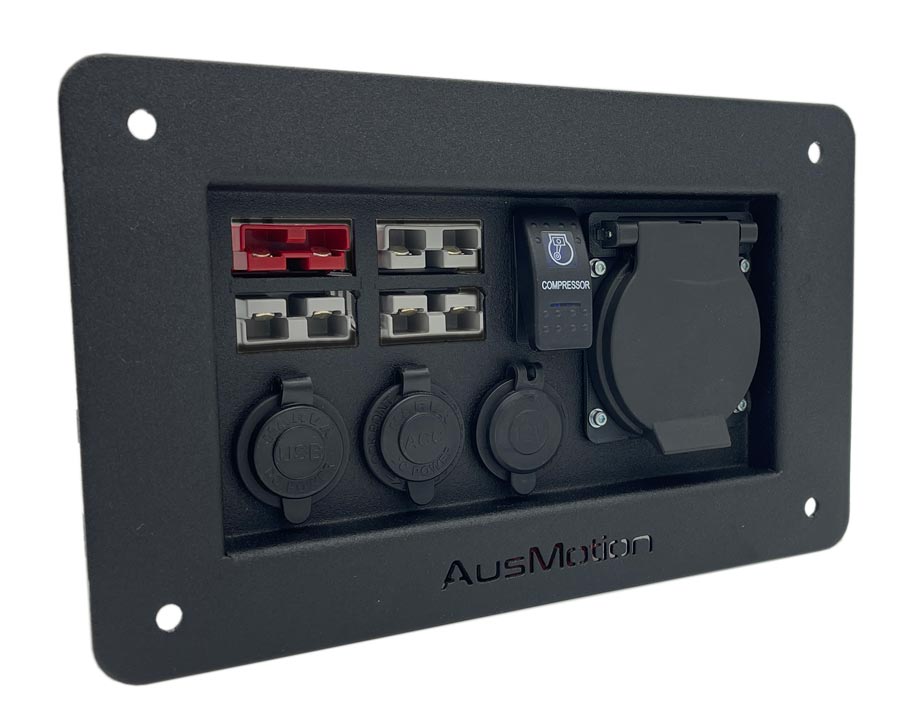

Replaces the Factory power outlet panel on the left side of the tub.
Suits vehicles with or without the plastic tub liner.
230V Outlet
This panel re-used the Ford 230V outlet which can be easily unplugged from the vehicle wiring and reconnected once fitted to the new panel. This methodology allows the work to be carried out by anyone – you don not need to be an electrician to transfer the 230V outlet because no wiring is modified or added – It’s just like plugging/unplugging an extension cord in your house.
The original weather proof cover is also reused, providing the same level of protection as it did in the original panel.
ARB Air Outlet
An adaptor can be ordered to allow installation of the ARB rubberised air outlet into one of the circular holes. This adaptor is unique to AusMotion panels and can be fitted in any of the circular holes normally used got 12V outlets, USB connectors etc.
Outlet Types
Includes pre-cut holes and securing tab for 4x Anderson SB50 connectors
Includes 3x 30mm circular holes for power outlets, USB outlets etc. (or the ARB air fitting if used with the adaptor)
Switches
Includes 1x cutout for Narva or Carling style rocker switches
Roller Shutter Switch
This panel does not include a cut-out for the Ford roller shutter switch. However, you can use a Narva momentary switch in-place of the Ford switch.
The Nara momentary switch will operate in the same way as the Ford switch.
If you’d prefer to use the original roller shutter switch, you’ll need to use one of our alternative panels
Installation Notes
Installation of this product takes less than 15 minutes, not including wiring.
No panel wiring is included with this product. Wiring is the responsibility of the installer.
We recommend that wiring is carried out by a qualified auto electrician.
Material
Powder coated black
Australian Standard structural grade steel.
Availability
This is a new addition to our product range. Whilst we assess demand for each new panel type there may be times when we are out-of-stock and shown as on backorder. Each panel is manufactured in batches which take around 3-4 weeks. However, there is likely to be a new batch already underway so the wait time will probably be less.
